MIRA Safety DS-1 Portable Decontamination Shower: Rapid On-Site CBRN Decontamination

Industrial-Grade Mobile Decon for HAZMAT, Emergency Response & Military Operations

Deploy the DS-1 anywhere a fast, reliable decontamination capability is needed—Toxic Industrial Chemicals (TICs), Chemical Warfare Agents (CWAs), biological contaminants, radiological particulates, or unknown CBRN threats. Use it for personnel in PPE or direct full-body decontamination in remote or disaster-stricken zones.

Why Choose the DS-1 Over Fixed or Temporary Systems?

• Unmatched Mobility: Total system ~152 lbs (69 kg)
  • Shower: 88 lbs (40 kg)
  • Decontamination box: 64 lbs (29 kg)
  Transport via pickup/SUV or palletized logistics.
• Rapid Deployment: Fully operational in < 60 minutes. No construction or permanent plumbing required.

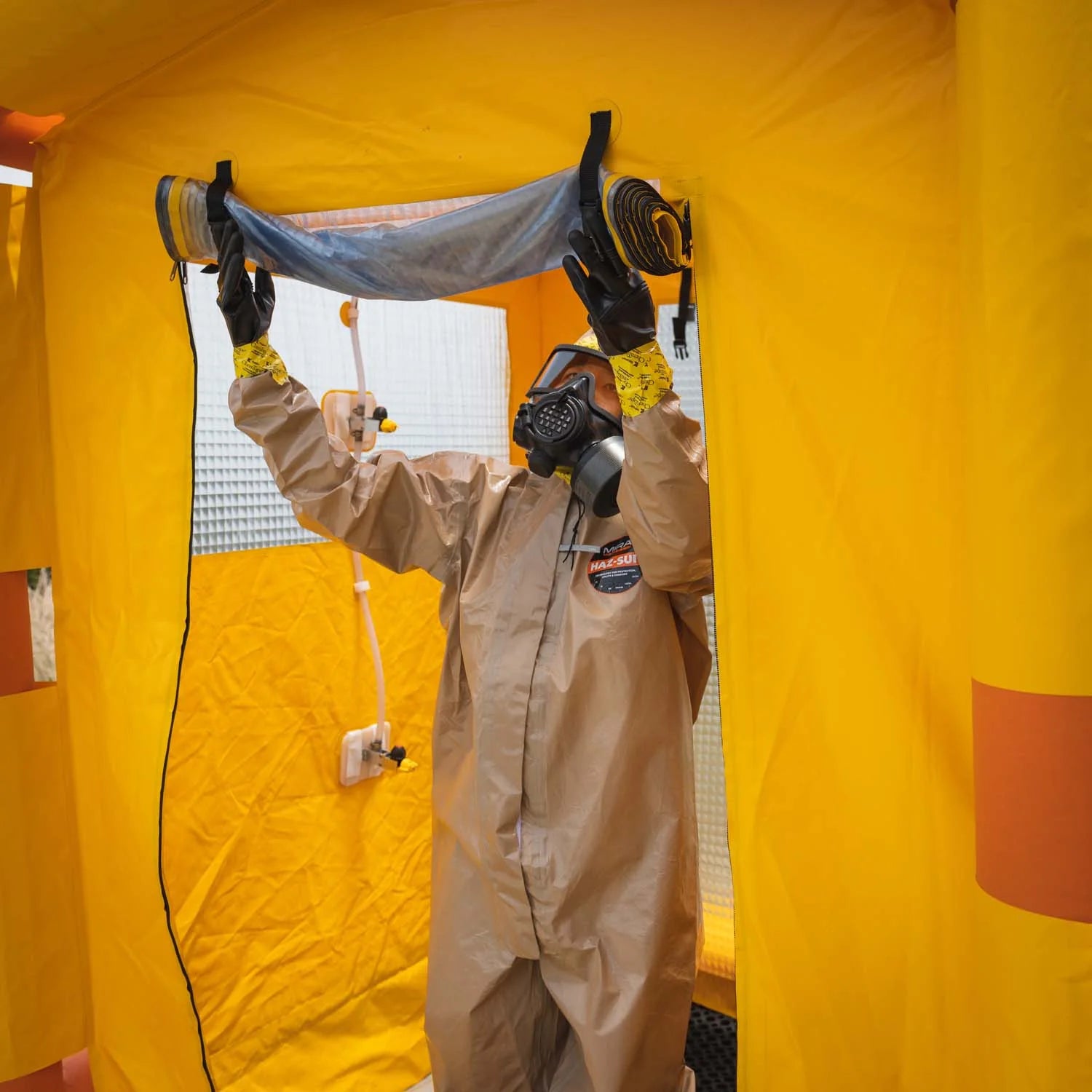

• All-Weather Resilience: Tented roof prevents rain pooling; integrated basin manages wastewater.
• Continuous Operation: Built with industrial-grade components for sustained use.
• Pallet Shipping Required: Specialized, multi-component system ships on a pallet.

Key Features — Engineered for Life-Saving Efficiency

Instant Inflation Technology

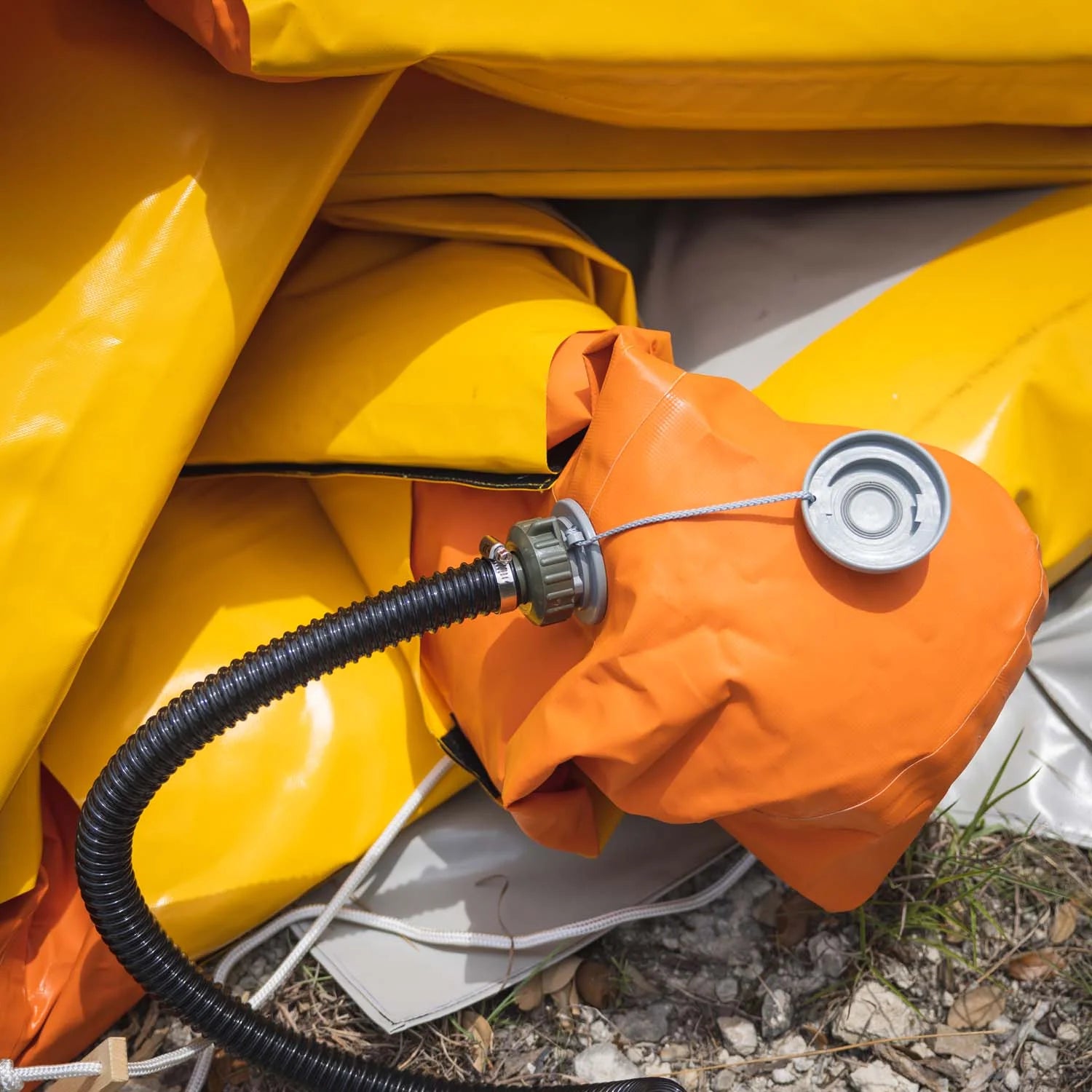

• Single-valve, rapid inflation (≈ < 60 seconds), with pressure safety valve.

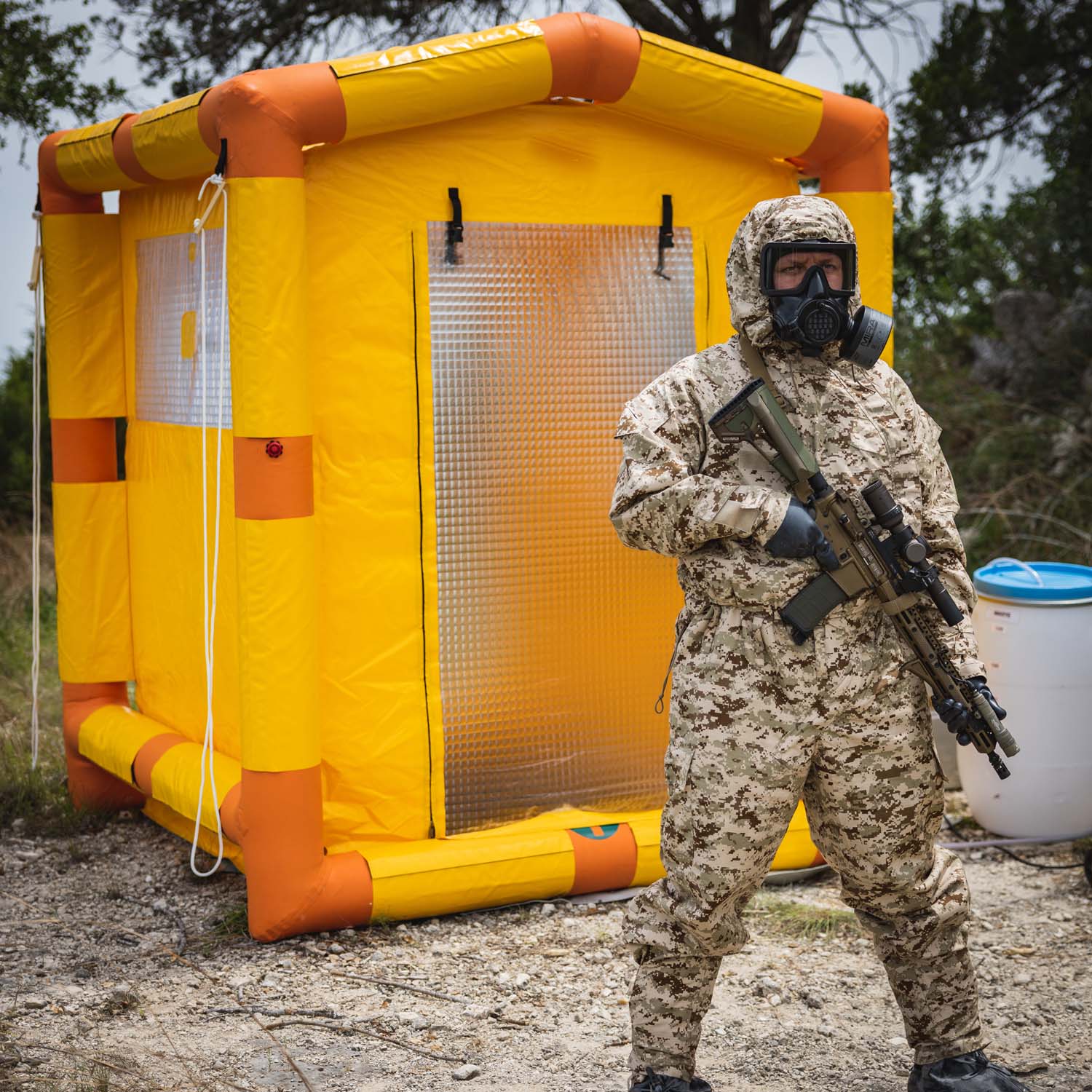

• Durable enclosure:
  • Inflated: 78.74" L × 78.74" W × 96.45" H (200 × 200 × 245 cm)
  • Packed: 43.3" L × 31.5" W × 13.78" H (110 × 80 × 35 cm)
  • Packed Size (quick reference): Shower ≈ 3′ × 4′ × 1′; Decon box ≈ 2′ × 1′ × 2′

Precision Decontamination Coverage

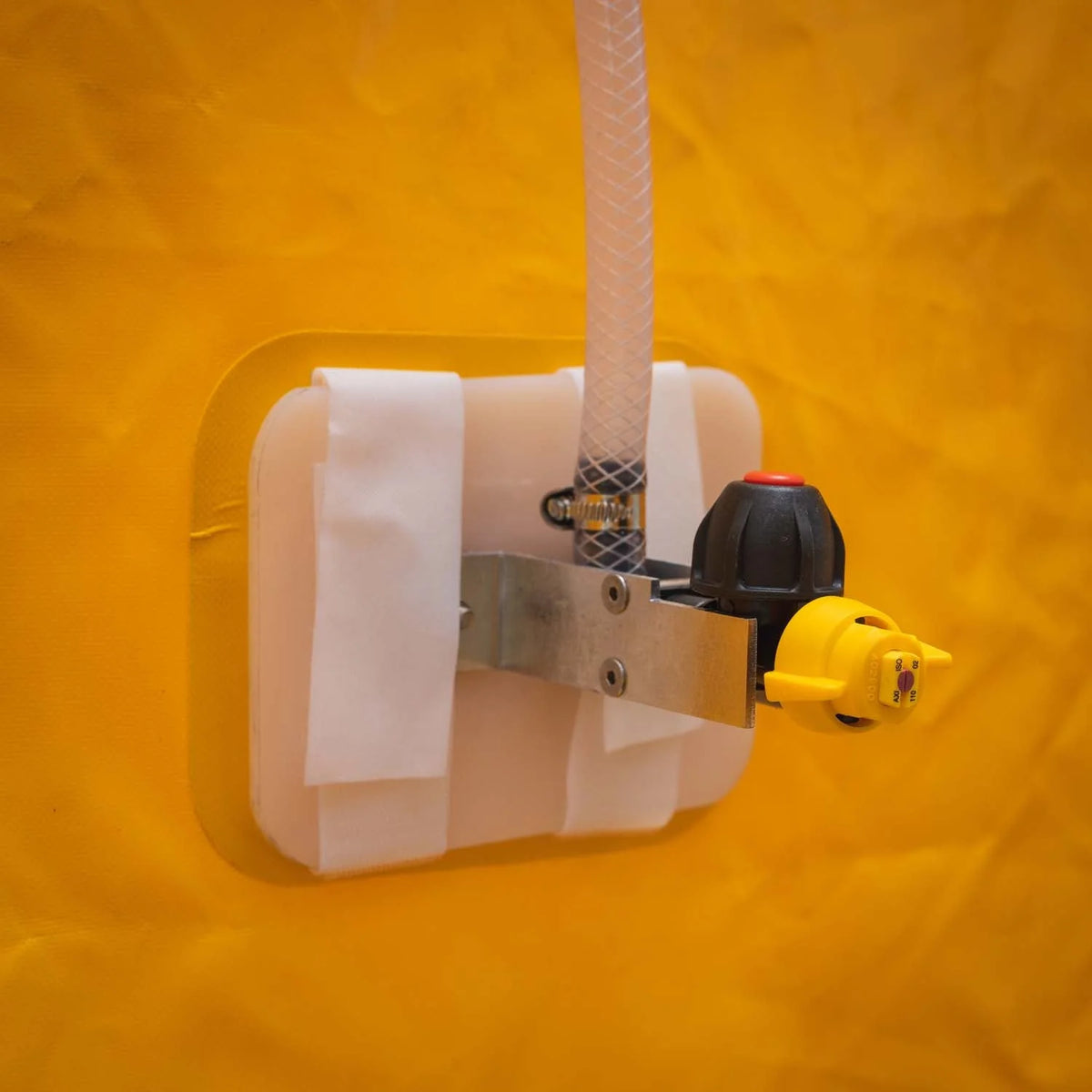

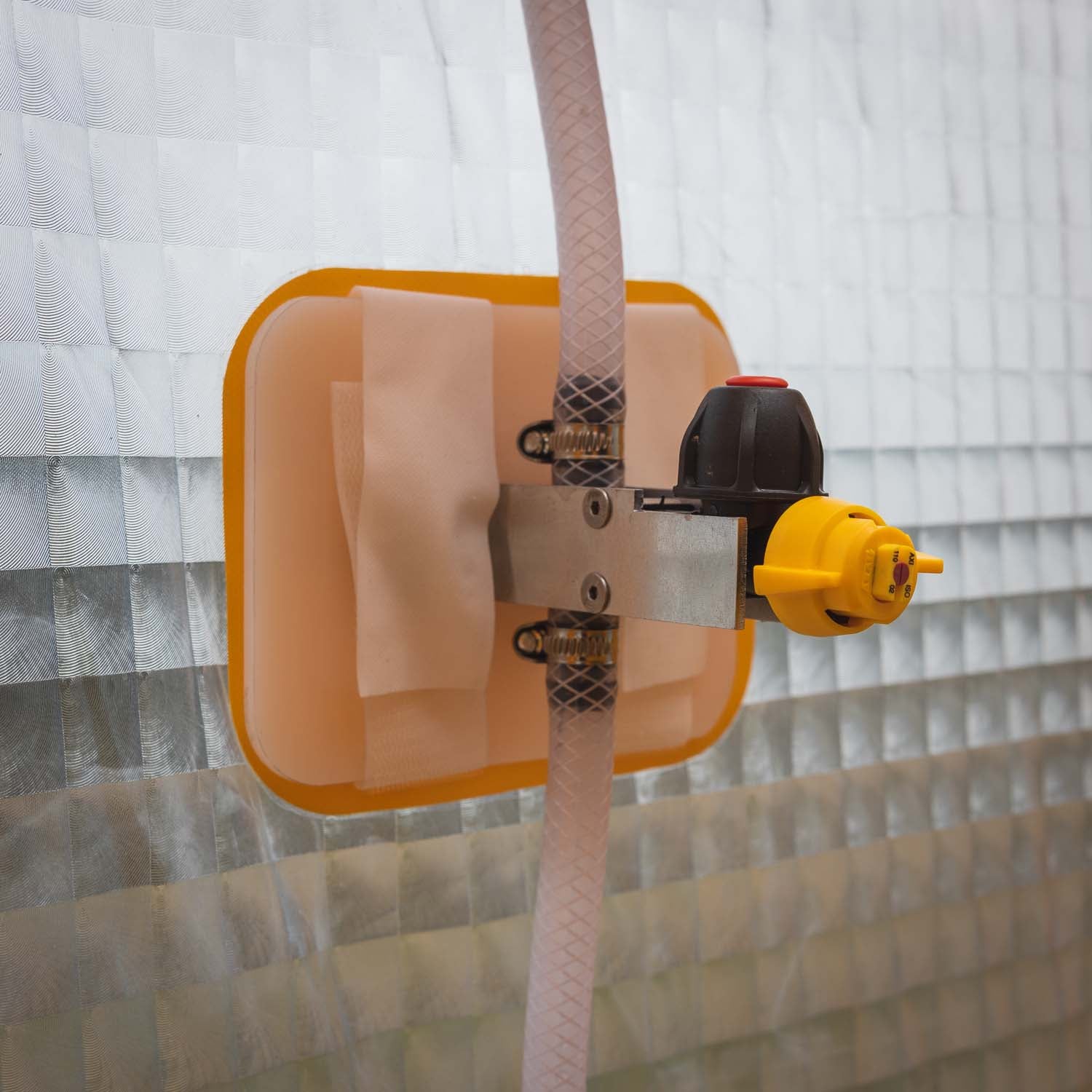

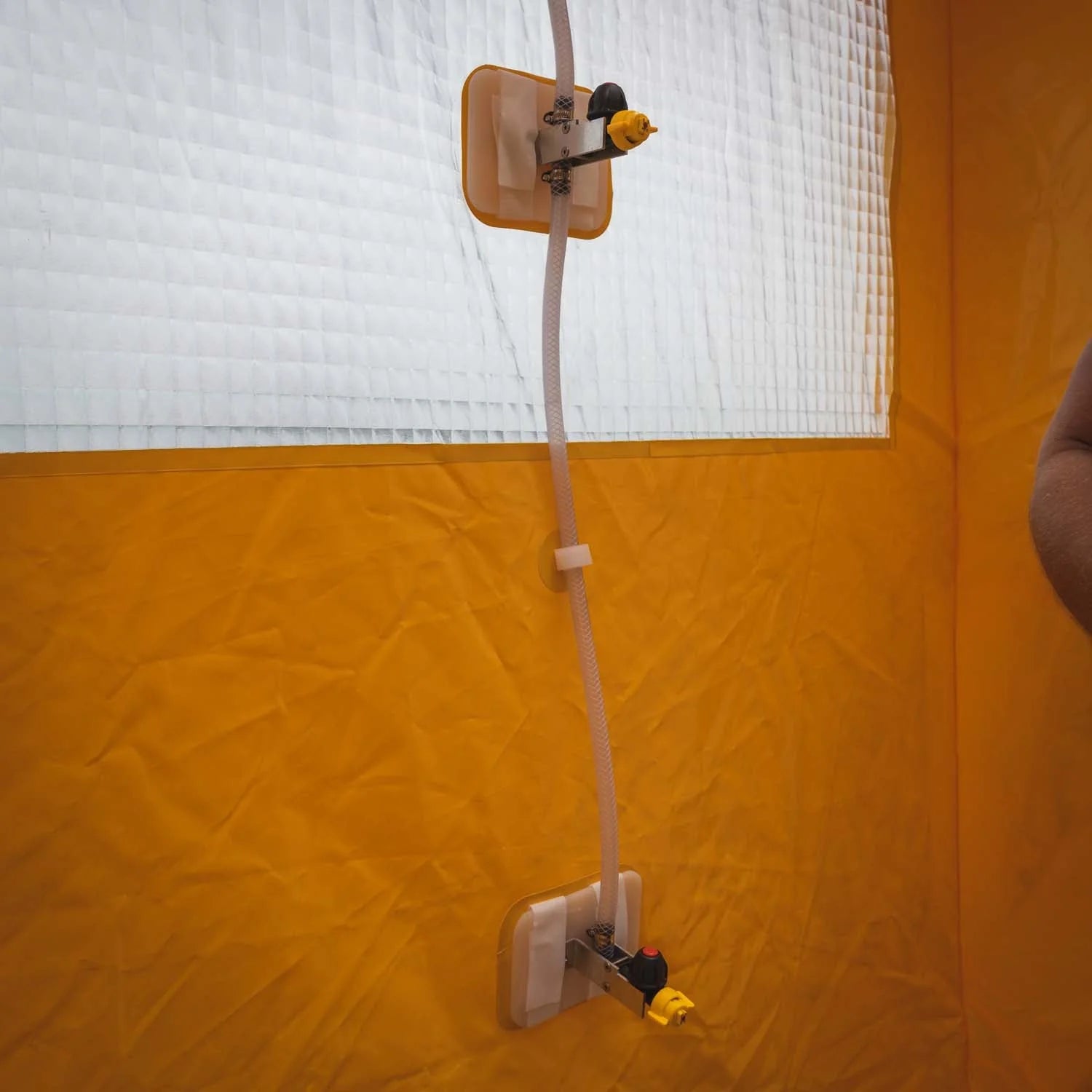

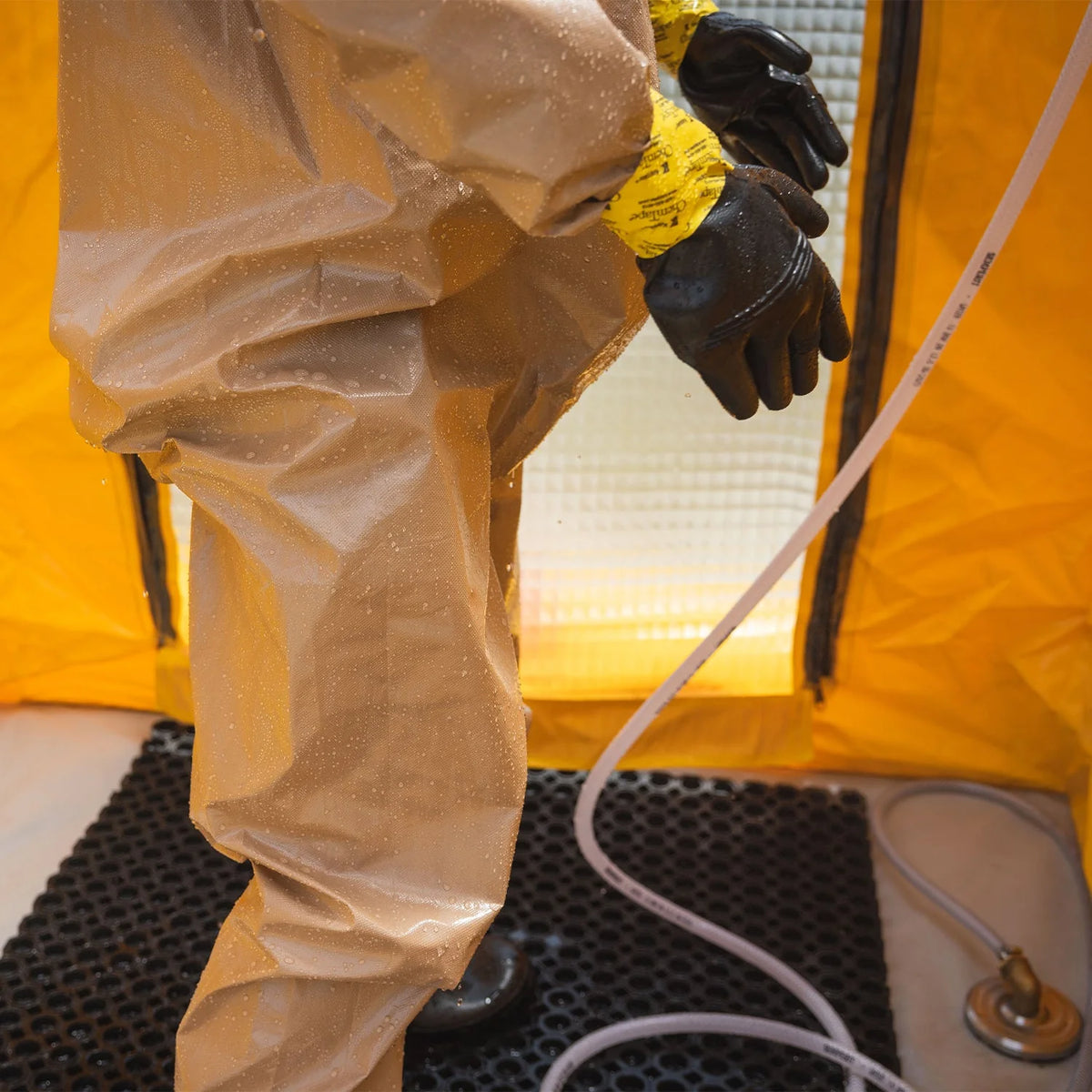

• 5 fixed nozzles + 1 wall-mounted hand shower deliver 360° body/suit coverage.

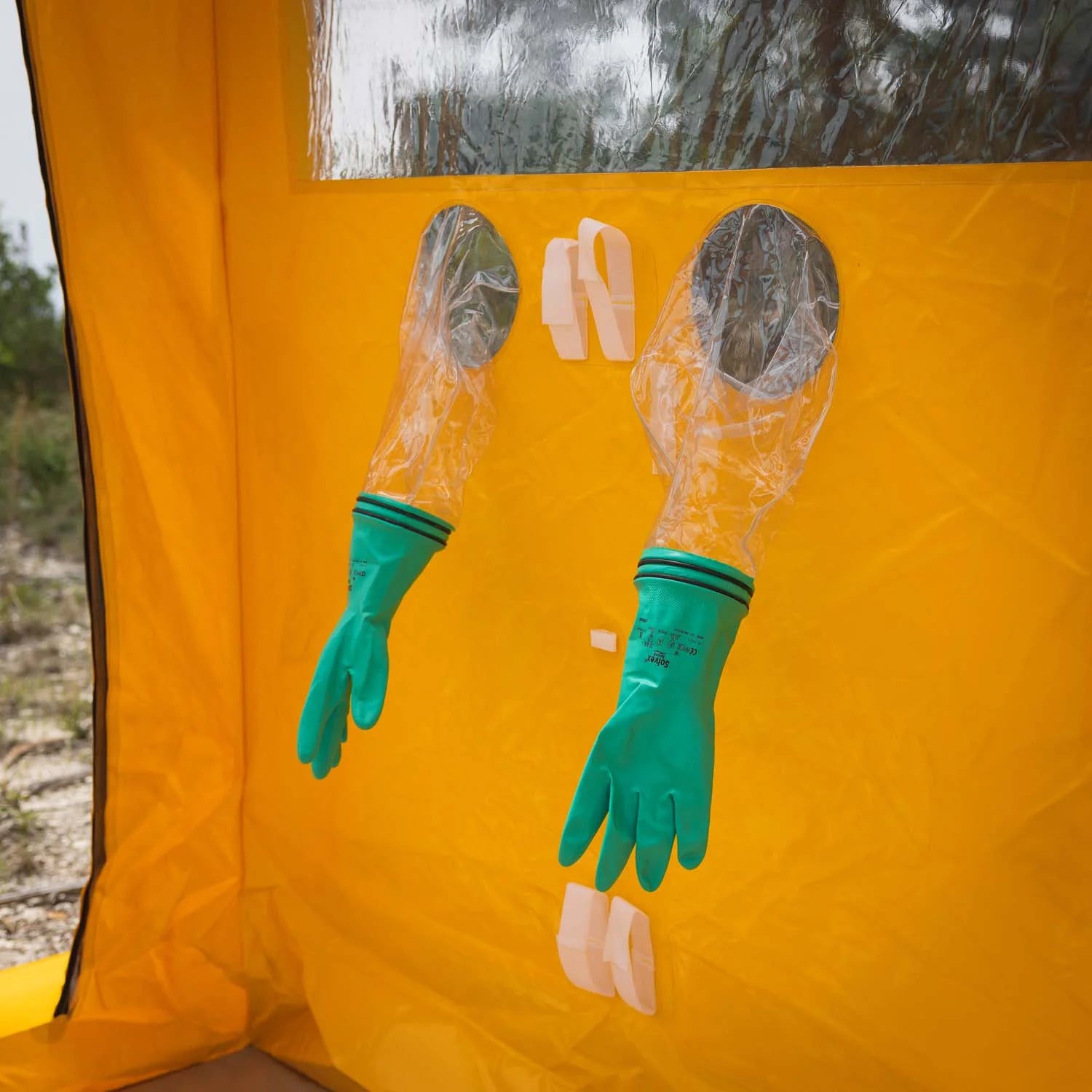

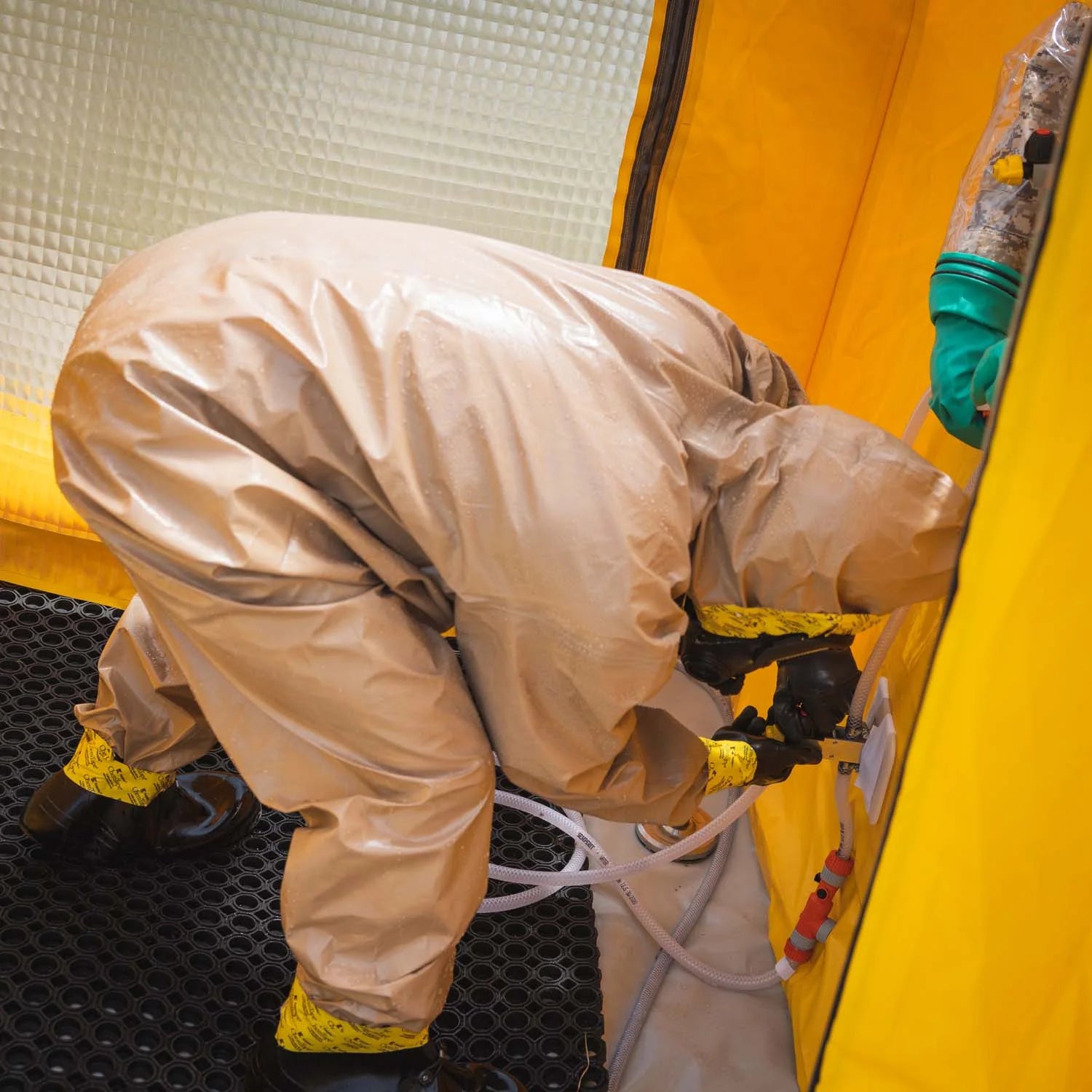

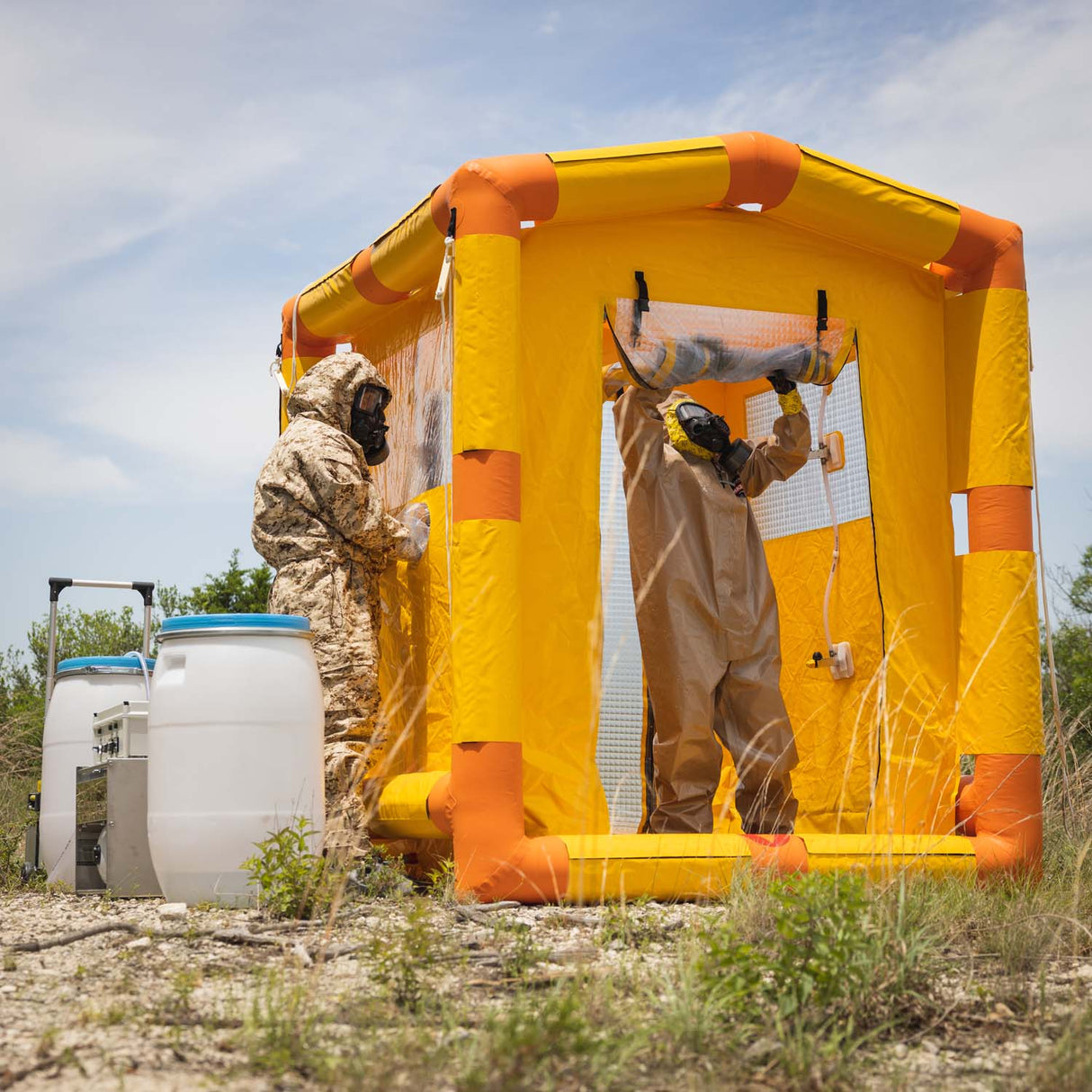

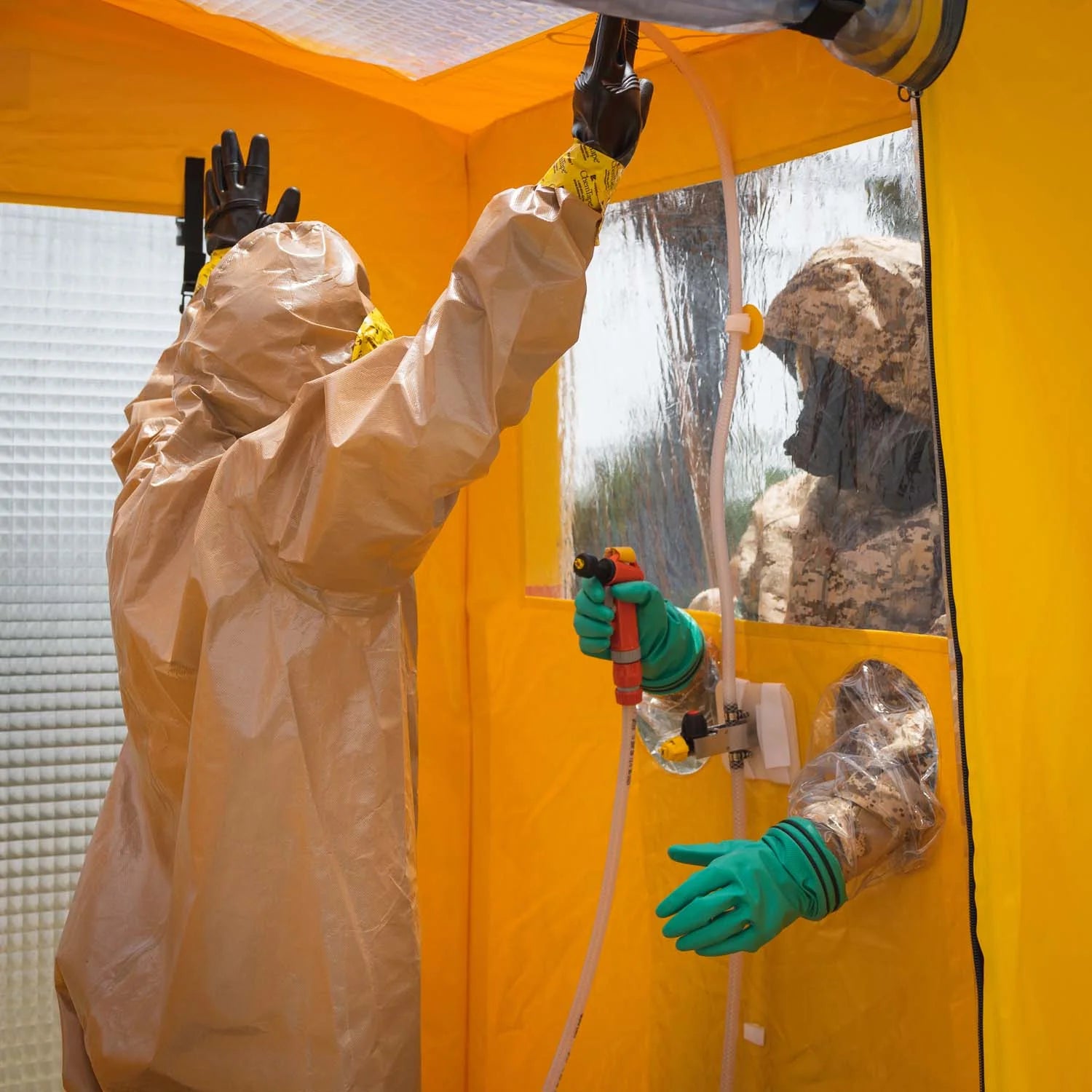

• External assist sleeves allow an operator to run the hand shower from outside the unit.
• Clear viewing windows provide maximum lighting and visibility for assisted decontamination.

Industrial Pump System

WPS 5.2 Pump (Cleaning)

• Flow: 19 L/min
• Continuous runtime: up to 20 minutes
• Inputs: 3/8" BSP, 1/2" hoses
• Maximum suction height: 3 m
• Motor: 185 W
• Switch pressure: 3.7 bar
• Cut-off pressure: 5 bar
• Max liquid temperature: 50 °C (122 °F)

WPS 2.4 Pump (Drainage via suction bucket)

Flow: 9 L/min

Continuous runtime: up to 20 minutes

Inputs: 3/8" BSP, 1/2" hoses

Maximum suction height: 2 m

Motor: 87 W

Temperature Envelope: Ambient operation up to 60 °C (140 °F); pump liquid temperature limit 50 °C (122 °F).

Simplified Command & Control

• Intuitive 3-switch interface, operable while wearing full PPE.

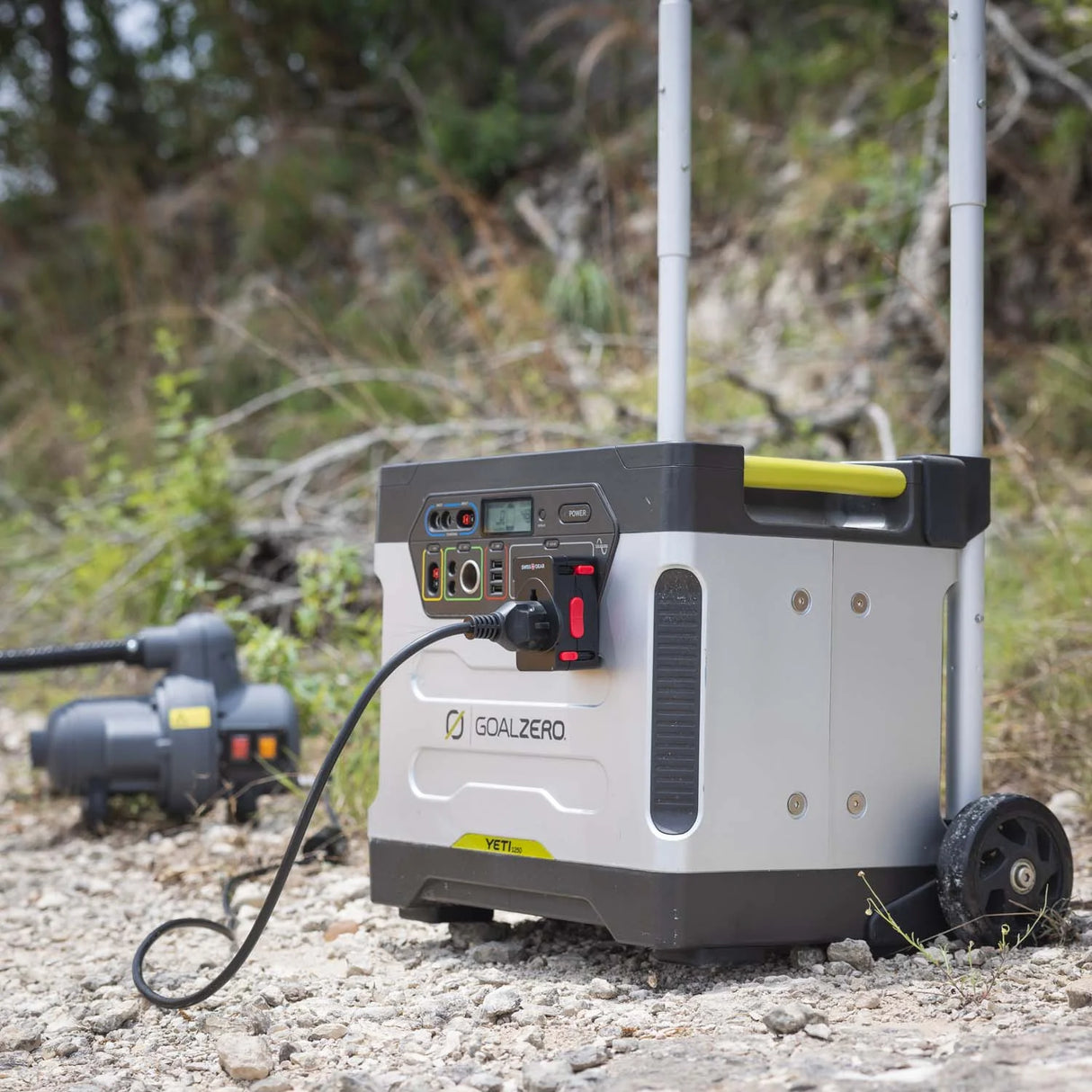

• Power: 220 V / 24 V / 300 W (generator or inverter-ready).

Integrated Waste Management

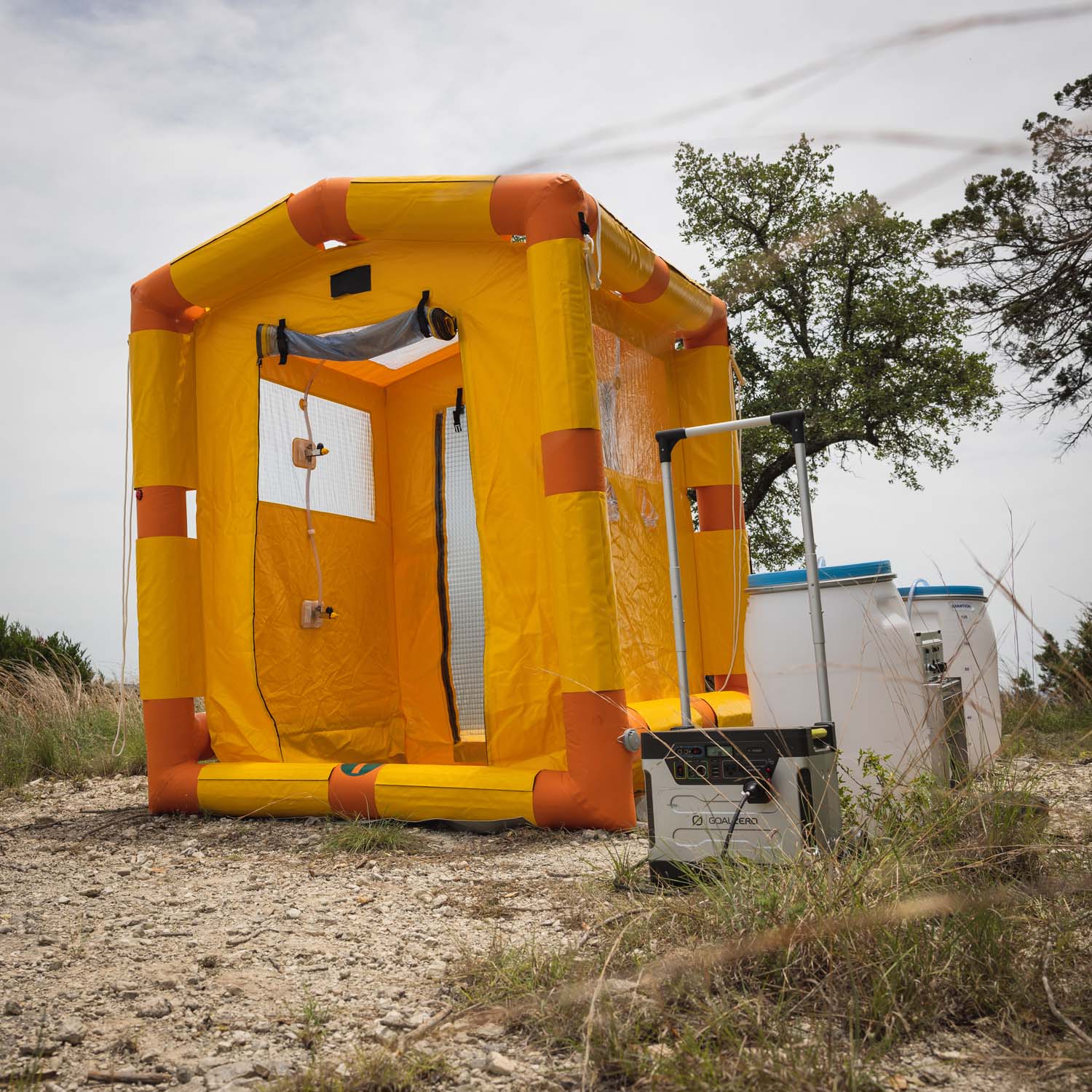

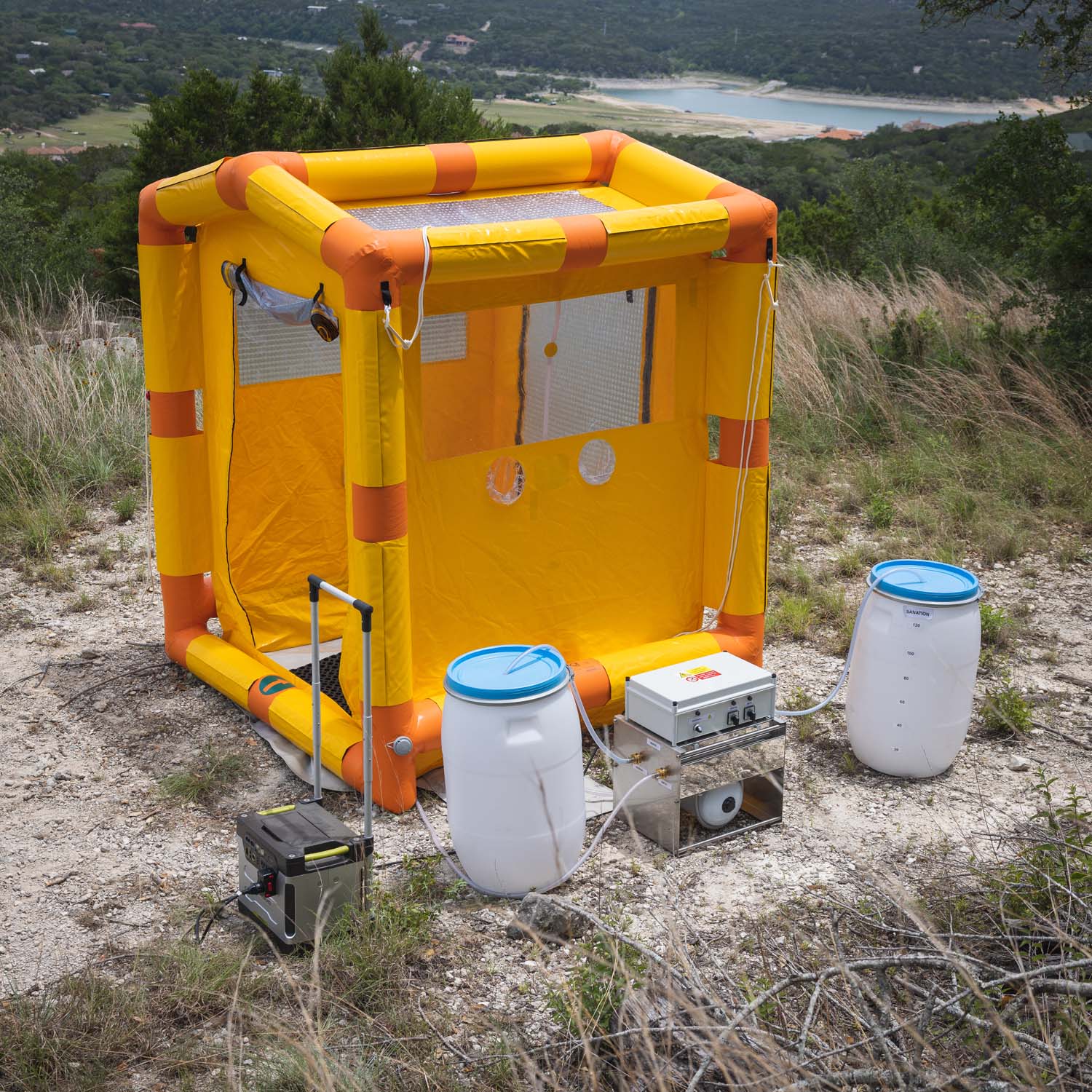

• Pre-routed lines to two 120-liter barrels (cleaning solution & wastewater).
• Built-in drainage basin prevents hazardous pooling; continuous 9 L/min waste extraction.

Field-Ready Durability

• Repair kit + 4 patches included for in-field maintenance.
• 5-year warranty for long-term serviceability.

Technical Specifications

Decontamination Shower (Enclosure)

Pumps & Flow

Decontamination Control Box

System Totals

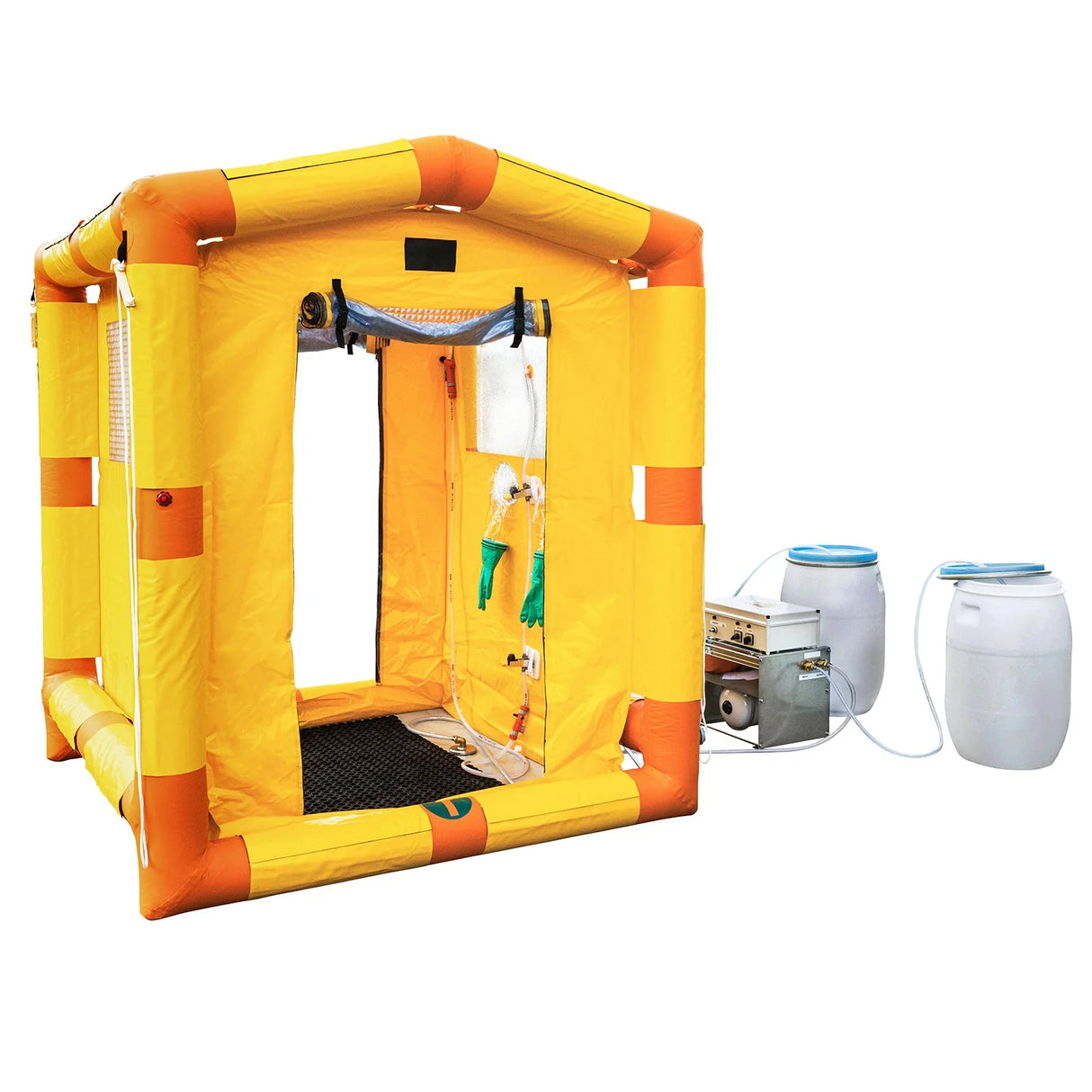

What’s Included

• Inflatable shower enclosure
• Decontamination control box with built-in pumps
• Portable air compressor
• Two (2) × 120-liter barrels (clean solution & wastewater), pre-routed for hoses/pump gear
• Hose set
• Repair kit with four patches

Operational Flexibility — Who Relies on the DS-1?

• Firefighters & HAZMAT Teams: On-scene mass-casualty decon
• Military & CBRN Units: Forward operating base support and rapid setup
• Police/SWAT: Post-riot or clandestine lab exposure mitigation
• Industrial Sites: Refinery/factory/lab emergency response
• Hospitals & Clinics: Isolation unit/ER decontamination workflows

Best Practice: Pair with the MIRA Safety Basic Decontamination System for a two-step, thorough cleaning protocol.

Storage & Safety Compliance

• Storage environment: Dark, cool, dust-free; 5 °C to 25 °C (41 °F to 77 °F); ≤ 60% RH; regularly ventilated; avoid sudden temperature changes.
• Keep away from: Radiant heat/sunlight, fuels, solvents, lubricants, and other flammables.
• Generator safety: Never operate generators in enclosed spaces (risk of toxic exhaust accumulation).

Ordering & Logistics

• Shipping: Pallet required (specialized, multi-component system).
• Condition: Ships complete and field-test validated.
• Warranty: 5 years.

Deploy Confidence. Defeat Contamination.

The MIRA Safety DS-1 delivers a robust, mobile decontamination capability where fixed systems aren’t feasible and time is critical. Trusted by global response units. Engineered for the unthinkable.
